LR-3500 Insulated Sliding System
LR-3500 INSULATED SLIDING SYSTEM

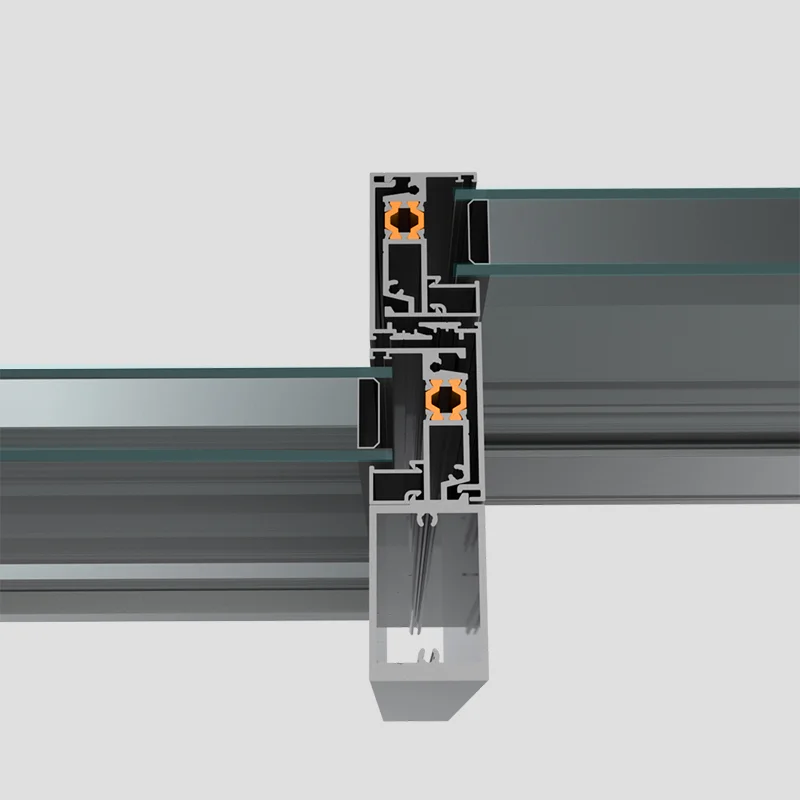

Slim Interlock Detail
TECHNICAL SPECIFICATIONS:
SASH WIDTH
2 4/16″
SASH LENGTH
3 10/16″
FRAME LENGTH
1 12/16″
GLASS THICKNESS
13/16″ – 1 12/16″
MAX. SASH CARRYING CAPACITY
440 lbs / 660–880 lbs
INSULATION BRIDGE
15/16″
• Sash Carrying Capacity
400 lbs standard / 660–880 lbs with HBSB mechanism.

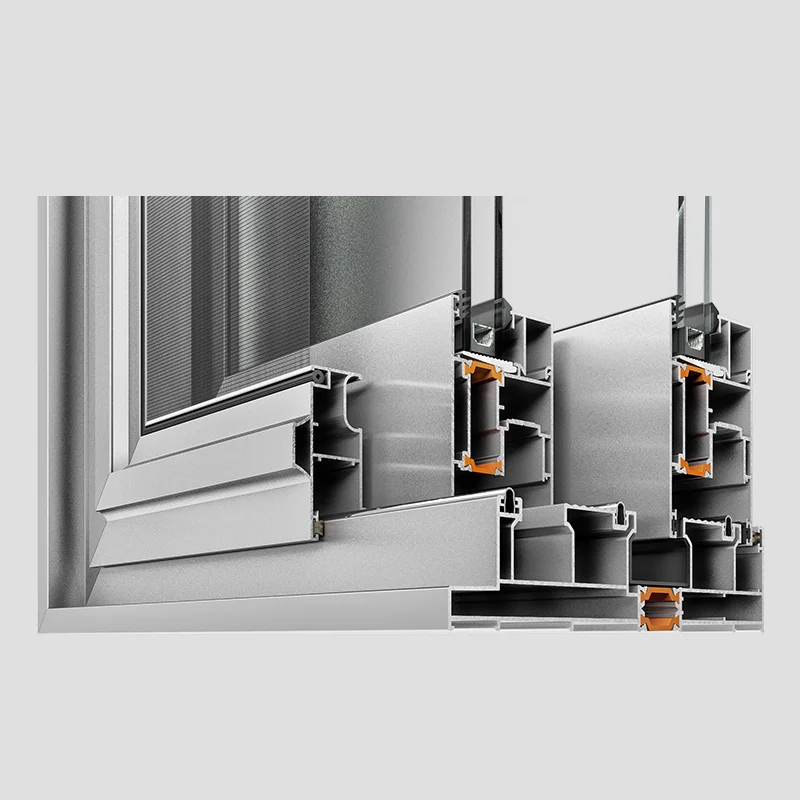

• Integrated Fly Screen
Fly screen design is seamlessly integrated into the system on all frame types.
• Sash Connection Options
45° and 90° corner joint alternatives available for sash assembly.
• High Durability and Smooth Operation
Stainless steel rail system combined with specially designed bearings ensures long-lasting performance and enhanced user comfort.
Sound Performance
Water Isolation
Maximum Security
Flyscreen Option
